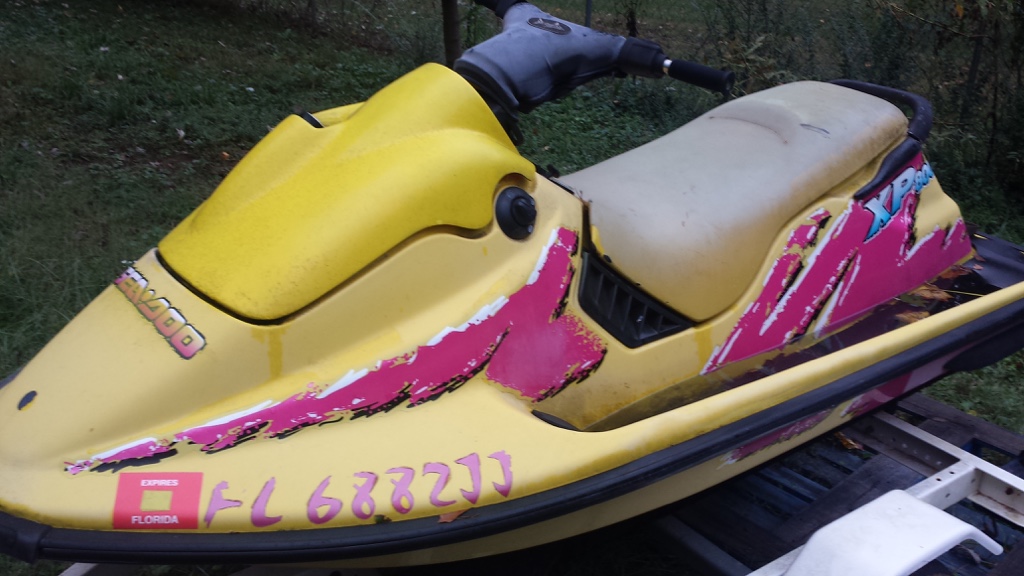

RESTO 95 XP 800 resto/mod

[jhjesse]

1of 500 I am glad you got the ski. I almost called the guy, but then found out you were interested. You probably saved me from a lot of nights on the couch.

Should be a great resto when you are done.



[Ruskeyjdm]

Glad one of the members picked it up, I also kicked the idea around of picking it up

Good progress so far!

Hood painted correct?



[Matt Braley]

I bid on that crank a little myself, glad I didn't drive it up too much.

I like the last guy's engine color choices. It looks like he matched the colors of the outside pretty good back then.



[1of500]

Adam I may take you up on that how far is he from Macon/Warner Robins area?

Jesse you just have to sneak in your new projects if its that bad, or give her some money to go shopping while you pick it up.

Ruskey it is a yellow hood that was painted yellow for some strange reason, I may try to wet sand it off they didn't even remove it from the ski before it was painted.

Total on the crank was 192.50 including 30 for shipping guy accepted offer on 2 oem pistons @ 175 for pair pins were 30



[1of500]

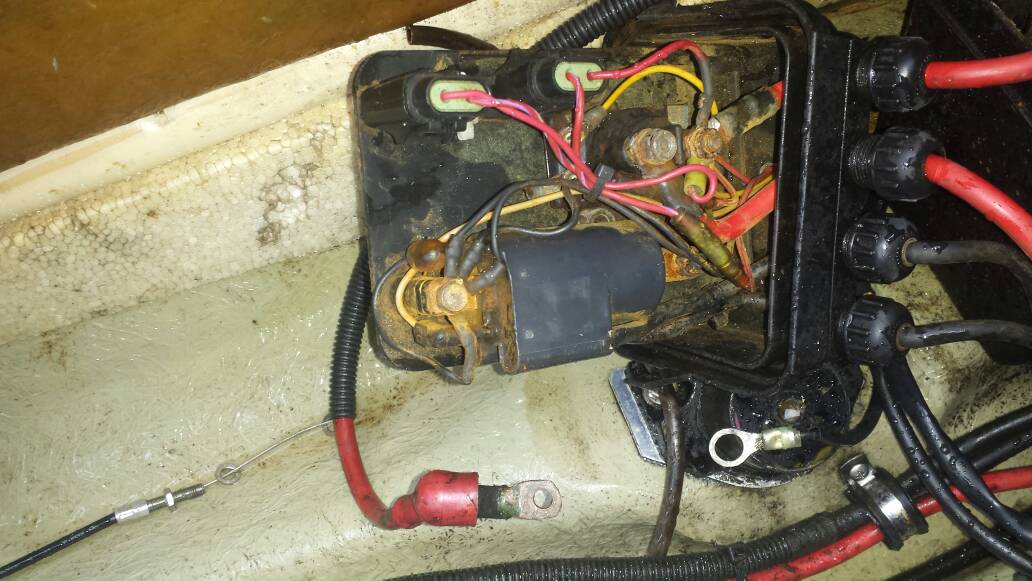

Tonka do you have a nice rear e box

If I can't find one I will just have to replace all the components in this one it was full of water



[AdamXP800]

I have a lake house in milledgeville on Sinclair and one on Oconee. Not far at all from macon



[AdamXP800]

I have family in Macon, Bibb county



[1of500]

I'm on the edge of Houston co but have a Byron address



[AdamXP800]

You ride Sinclair?



[1of500]

Sinclair, Jackson, tobo



[1of500]

My Great aunt has had a lakehouse on Sinclair since the 1960's I go up there a few times a year



[AdamXP800]

You know twin bridges area?



[1of500]

Yeah look up couch rd Milledgeville on google maps that's where im normaly at when on sinclair



[1of500]

racer do you have another part number for those bearings on the crank the 290832238 doesn't cross ref to anything cant find them anywhere but in the microfiche



[racerxxx]

racer do you have another part number for those bearings on the crank the 290832238 doesn't cross ref to anything cant find them anywhere but in the microfiche

420832573 replaced 290832239 replaced 290832238


Guy has 5 available, you need 3. Inquire about a combined shipping rate. Dealer list is $32 (2 front bearings and one in front of the labyrinth seal on the crank.)

http://www.ebay.com/itm/NOS-OEM-Sea..._Watercraft_Parts&hash=item2a3ae4c343&vxp=mtr


You need 1 of 420932579 replaced 290932579 Dealer list is $37 (This is the rear most bearing)

http://www.ebay.com/itm/Seadoo-Cran...579-/121415169225?hash=item1c44e874c9&vxp=mtr


What else do you need?



[1of500]

made offer on this of $18 shipped since out of pack
http://www.ebay.com/itm/19055372746...49&ssPageName=STRK:MEBIDX:IT&autorefresh=true

haven't found 290932095



[1of500]

Probably need to rebuild the rotary valve too. lol



[racerxxx]

made offer on this of $18 shipped since out of pack
http://www.ebay.com/itm/19055372746...49&ssPageName=STRK:MEBIDX:IT&autorefresh=true

haven't found 290932095

Just hit your dealer. They're like $23. I never found them on Ebay. Somewhere I have my receipt for the SKF's I bought at my local bearing warehouse.

SKF 6304 OPEN BALL BEARING rear on on the CB shaft I paid $21
LOL, I think these are actually the exact ones for the rear CB shaft! Pull your's and read the numbers on it.
http://www.ebay.com/itm/SKF-Bearing...=BI_Heavy_Equipment_Parts&hash=item339760f893

SKF 6304-2RSJEM SEALED BALL BEARING front on the CB shaft I paid $23
http://www.ebay.com/itm/SKF-6304-2R...=BI_Heavy_Equipment_Parts&hash=item27eff6bc1e

The composite cages on the OEM bearings are rated for 14K RPM---yes 14,000 RPM. Far superior to a metal caged bearing.


Sorry I was typing and searching and all that jazz when I posted this.



[racerxxx]

Inner Rotary shaft---CASE SIDE-----You can still get it cheaper at the dealer, not much but the pennies start to add up.

http://www.ebay.com/itm/NEW-OEM-Sea...Parts_Accessories&hash=item3a851d557e&vxp=mtr



Outer (on the shaft) 293350051. I have never found on Ebay. I just paid $13.99 at the dealer and they get them to me in 3 days. They were cheaper than my bearing house.



[racerxxx]

made offer on this of $18 shipped since out of pack
http://www.ebay.com/itm/19055372746...49&ssPageName=STRK:MEBIDX:IT&autorefresh=true

haven't found 290932095

He'll deal, I have bought a bunch from him all made offer stuff and he never countered back. Bitch is I gotta pay sales tax.



[racerxxx]

Please just double and triple check some of this crap, these parts posts are moving quickly and I can make mistakes--just don't want you to get the wrong stuff, I try to post accurate info but the sellers might not be 100% on their end.. I try to document as much as I can but sometimes my brain goes out to lunch and my body doesn't. Like just measure your bearing ID's and OD's and thicknesses properly. I'm usually only dyslexic with numbers.



[1of500]

I will check the part numbers when they all arrive but I need to find someone to take the gear off the old crank and install on the new one may as well have them do the counter balance too.



[racerxxx]

Here are the seals for the CB.

http://www.ebay.com/itm/NEW-COUNTER..._Watercraft_Parts&hash=item4178654cd6&vxp=mtr

Be very careful when they pull the rear counter weight off the CB shaft it MUST go back on the exact same way. Have them mark it so it's perfectly aligned when it gets pressed back on.



[Minnetonka4me]

Tonka do you have a nice rear e box

If I can't find one I will just have to replace all the components in this one it was full of water

Ive got a couple but only one minty mint one. I maybe see 1 out of every 4 machines nice, most look like yours. Ill PM ya some price options.



[1of500]

Ive got a couple but only one minty mint one. I maybe see 1 out of every 4 machines nice, most look like yours. Ill PM ya some price options.

add rear grab handle and front bumper as well
