Rear electrical box pictures?

Status
Not open for further replies.

bodine465

New Member
Messages
33
Location
Tacoma, WA
Water Crafts
1995 Seadoo HX
1995 Seadoo XP
1996 Seadoo GTX
The previous owner of my project 96 GTX pulled the starter solenoid to test it on another Seadoo, then half-a$$ed reconnected it back into the GTX. I haven't been able to find a good wiring diagram for the box or a decent picture to use for a guide. I think I know how it bolts up, but don't want to risk frying something. Here is a picture of how it currently looks. Does anyone have a picture or link to a properly bolted setup?



bodine465

New Member
Messages
33
Location
Tacoma, WA
Water Crafts
1995 Seadoo HX
1995 Seadoo XP
1996 Seadoo GTX
Better shot, including solenoid. Was concealed under box, in case someone wanted to alert me that it looked to be missing.



bodine465

New Member
Messages
33
Location
Tacoma, WA
Water Crafts
1995 Seadoo HX
1995 Seadoo XP
1996 Seadoo GTX

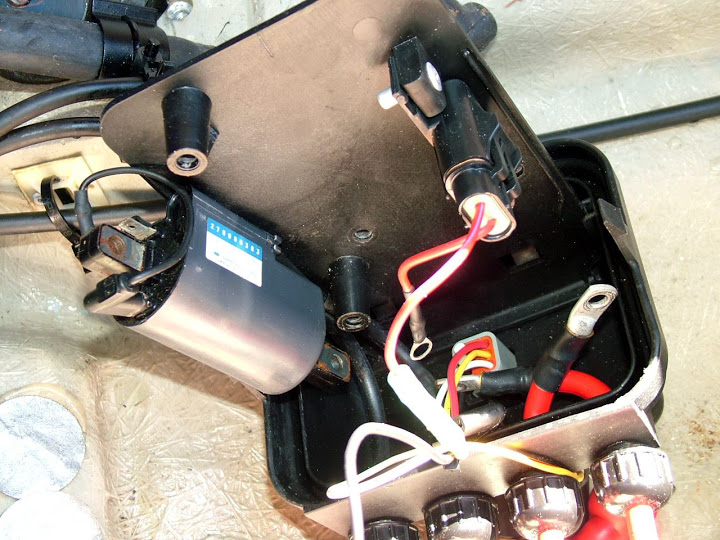

One last picture. I'm assuming this is how it bolts up, but not sure if wire #1 is where it should be, or where the other 3 numbered wires hook up.



bodine465

New Member
Messages
33
Location
Tacoma, WA
Water Crafts
1995 Seadoo HX
1995 Seadoo XP
1996 Seadoo GTX
Think I got it figured out after resorting to the ultimate collection of parts pictures, eBay. Discovered I had the solenoid upside down. All black wires attached at the upper coil bolt. Red wire went to the battery cable post of the solenoid.

Sound about right?


wsalguero99

New Member
Messages
31
Location
Los Angeles
Water Crafts
(2) 2002 SEADOO GTI.
can you please post pics of the final results with all the wires hooked up. I'm having the same problem......THANKS


bodine465

New Member
Messages
33
Location
Tacoma, WA
Water Crafts
1995 Seadoo HX
1995 Seadoo XP
1996 Seadoo GTX

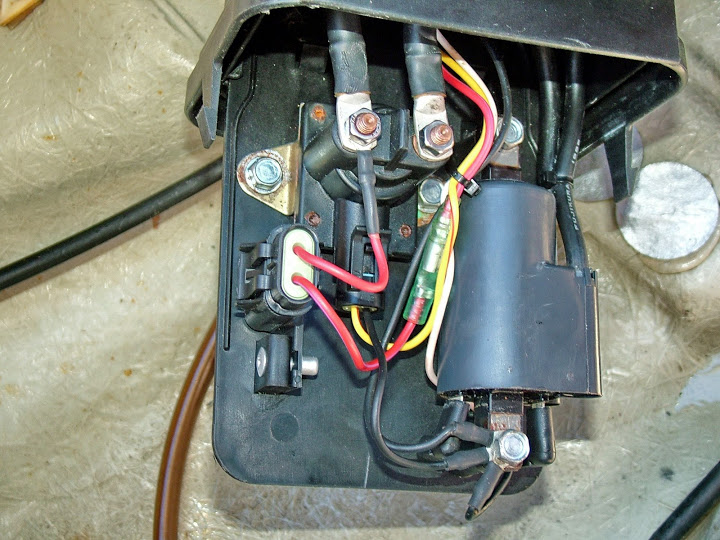

Here's the finished (I hope) connections. Let me know if someone sees something wrong.
