Magneto assembly

[justinb]

Hi All

Hoping someone can help , busy rebuilding my seadoo gti 2002 engine 717 type .

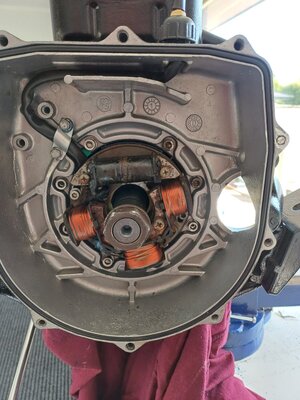

See attached pictures of my charging coil have I fitted this correctly , the way I see it the cable needs to pull out as it's shown as thi is where it's secured.

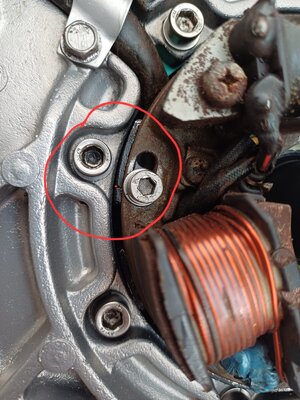

On the 2nd picture I have adjusted the coil that where the bolt goes in its in lign with a mark I found I'm the inside see red dot in big circle

Is this correct or am I missing something ?

Just been cautious, the fly wheel just goes over the coil and then is torqued to 150 NM?

Thanks



[Spider4real]

I do not believe that is aligned properly. You do not aligned the mark to the bolt. Under the bolt there should be a mark on the magneto that should be aligned to the mark on the housing which you marked with the red dot. Remove the bolt and you shoukd see the alignement mark under it. I think I can see it in your pic but it should be very clear with the bolt out of the way.



[justinb]

I do not believe that is aligned properly. You do not aligned the mark to the bolt. Under the bolt there should be a mark on the magneto that should be aligned to the mark on the housing which you marked with the red dot. Remove the bolt and you shoukd see the alignement mark under it. I think I can see it in your pic but it should be very clear with the bolt out of the way.

Thanks , I will look this eve for the markings



[justinb]

Thanks , I will look this eve for the markings

I had a look and found it all aligned now ,thank you.
