2004 rxp exhaust valves known to fail??

[kbolaloco1]

hello all

I just bought an 04 rxp and I ve been reading around to findout what issues are common with this skiis, well i cam accross that in some models the exhaust valves are known to fail, some threads mentioned only 05-06 models others includes the 04, i really dont know what to think, is there any way to check if they are the bad ones or is that something i shouldnt worry about.

Thanks



[BMANN06]

Yes you have the problematic valves and they should be changed ASAP as your boat sees salt water. You can remove the cylinder head cover and look at the very tip of the vavle stem you will see numbers etched on the edge (See Pic) if the numbers start 72....... you've got the hollow sodium filled valves, if the number starts 75.... your good to go. If there are no numbers than you have an aftermarket set of vavles ...

Here is some pics to help you find where the number is....

On the Left Bad Valves

On the Right Good Valves ...

You can see the numbers with the cylinder head cover off, use a flashlight and make sure you look on the exhaust side.



[Dennis]

Great post BMANN! :cheers:



[kbolaloco1]

Thanks for that input how easy is to remove the cylinder head cover, would I need new gaskets or I could just put everything back together, in case they are the bad ones how hard are these to change, any write up that you are aware of ?



[BMANN06]

Great post BMANN! :cheers:

Thanks Dennis!

Thanks for that input how easy is to remove the cylinder head cover, would I need new gaskets or I could just put everything back together, in case they are the bad ones how hard are these to change, any write up that you are aware of ?

Nope no new gaskets required, there is just a rubber gasket/seal on the cylinder head cover so after you check just tighten the cylinder head cover fasteners down 10-12Nm is plenty. Regarding changing them ... well I would say its an "advanced" level procedure. If your familar with 4 strokes it shouldn't be an issue. If your new to engines or 4 strokes I would contract this one out. That said I would do this sooner than later ... If you look through some of my older threads you'll see the carnage that a dropped valve will do...



[kbolaloco1]

Cheers men ill check them out now



[kbolaloco1]

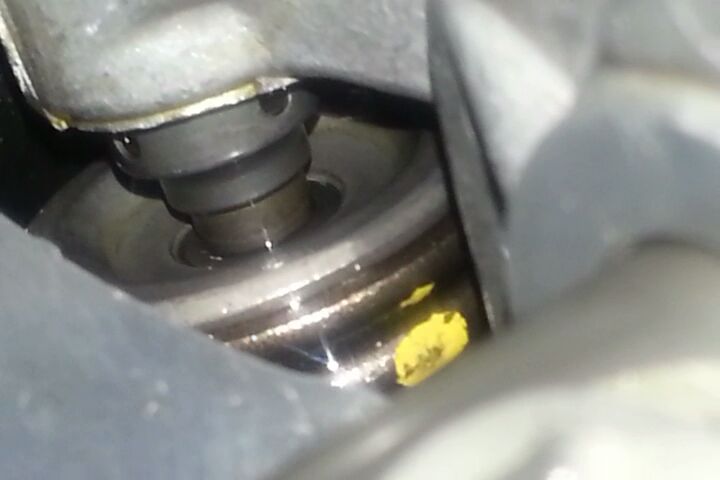

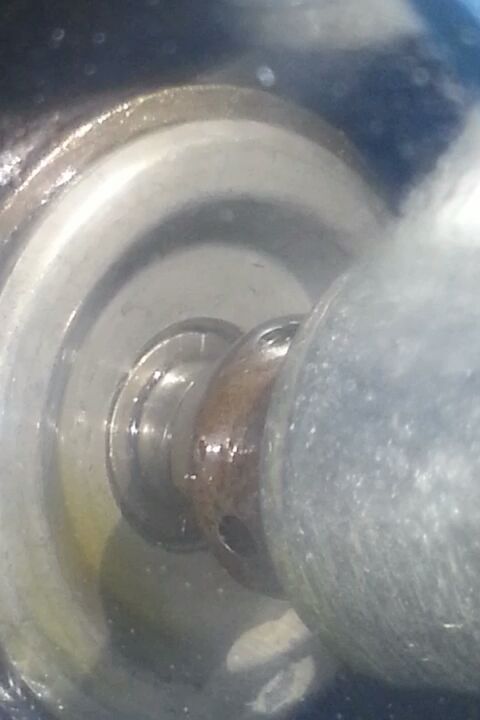

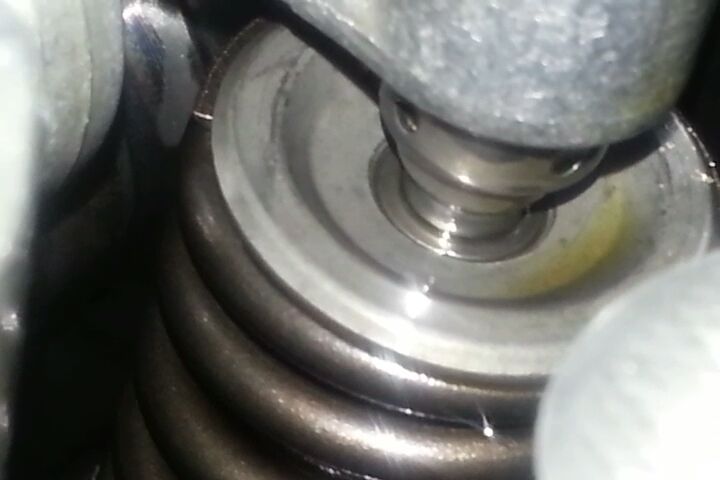

alright so following your advice i was able to pulled the cover out and look closely to the valves i checked all of them as i wasn't sure which one were for the exhaust and which ones were the intake, it was kind of frustrating because for more that I looked i couldn't see any number so i didn't know if i was looking at the right thing, after looking at others thread i was able to compare where the numbers are supposed to show and confirm mines doesn't have any numbers, I snapped some pics so you guys could tell me



[kbolaloco1]

sorry for the repost was trying to see how it works best, now if im right are these aftermarket valves,? and if so im I saved from any chaos?



[BMANN06]

Unfortunately I can't see any numbers on the valves with those pics. I know it can be a bit difficult to see them with the rockers over them. You'll have to look very carefully for the numbers, the exhuast vavles will be the ones opposite the side of the dipstick (if this helps).



[kbolaloco1]

Ill try again but thought u mentioned that if there is no numbers is because they are aftermarket.. I looked for like an hr and didn't see anything will try again this afternoon, thanks for your help and time



[KK40384]

You may get lucky and someone already has changed them out.



[kbolaloco1]

You may get lucky and someone already has changed them out.

Thats exactly what i was hoping i will double check again today.... im just praying they did



[ocod]

KB, where you in Miami?
Were probably riding Sunday to Fowery Rock.
7 miles from Lighthouse on Key Biscayne.



[kbolaloco1]

damn i would love too where are u guys meeting at what time>>??



[ocod]

damn i would love too where are u guys meeting at what time>>??

Hi,

Do you know Parrot Jungle?
Its the ramp right behind it called Japanese Gardens.

Haven't confirmed time with buddy but be there by or before 10.



[kbolaloco1]

Hi,

Do you know Parrot Jungle?
Its the ramp right behind it called Japanese Gardens.

Haven't confirmed time with buddy but be there by or before 10.

Was actually looking at the forecast and is going to be blowing, I think ill skipped it this time pm your number I will def do something next weekend if my exhaust valves are good, I usually ride with a couple of other ppl so let ke know if you will be interested



[kbolaloco1]

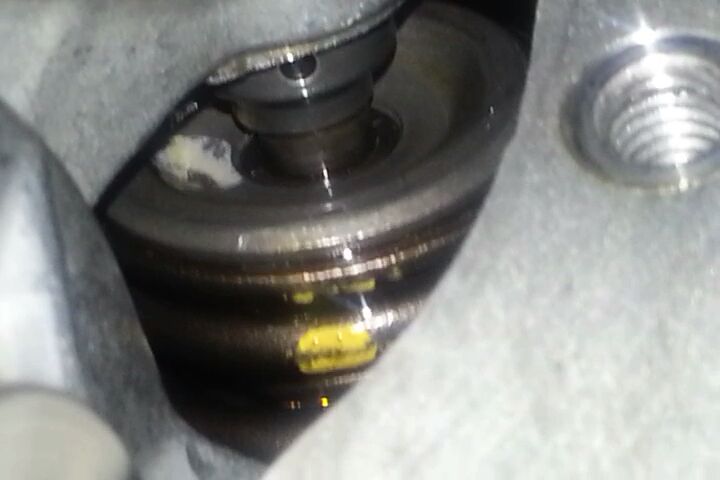

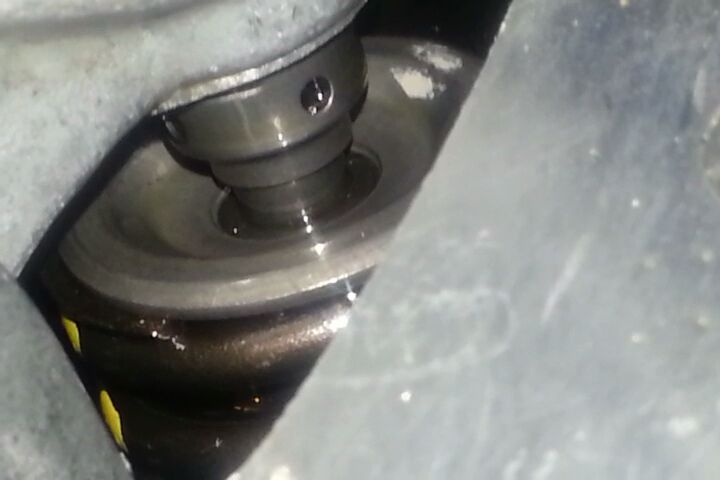

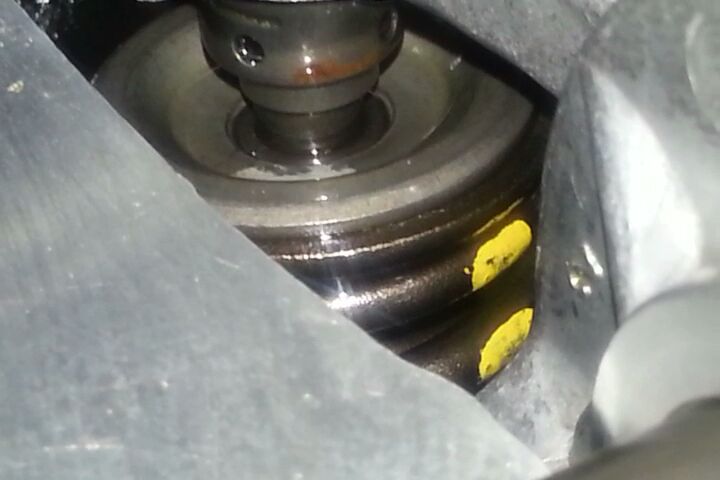

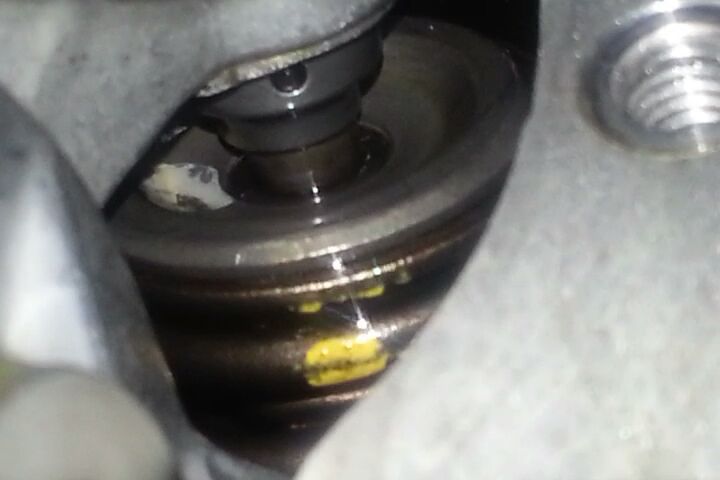

hey so i looked again and nothing i spent almost two hours on it and didnt see anything here are the best shots i was able to get





Im i really that lucky:drool5:



[BMANN06]

If you've looked around each exhaust valve tip and don't see any numbers then yes my friend ... you really are that lucky!



[BMANN06]

Now that we've all seen pics of the inside of your cylinder head ... how's about snappin and postin some pics of the ski!!!



[KK40384]

Yea no kidding you got lucky. That would not have been a fun job to replace those.



[kbolaloco1]

:hurray:Will do as son as i get home tomorrow i will try to give it its first salt water ride since i got it ....
