GSX limited oil and fuel lines

[t2ylorgang]

Hello everyone,

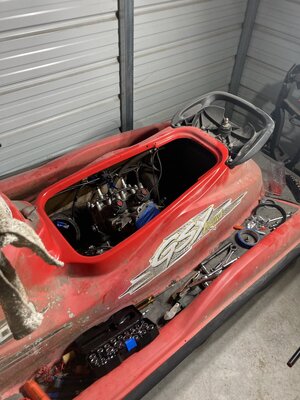

I recently got a 99 GSX Limited 951. I need to replace all my oil lines (green sludge).

What sizes do I need to do all of them? I was planning on just tracing them for the length but as far as diameter does anyone know what sizes I am going to need?

To my understanding I would need 3/32” but isn’t there a larger diameter used in some spots too?

I would also like to do all the fuel lines and I am wondering what the diameters are for those as well.

Any recommendations on what kind of line to use would be appreciated as well.



[Grim]

Download the parts manual for the web, its free, that will tell you what the size of each line. When I did mine I just used automotive gas line. The books shows everything in MM I just converted it to the closet "inch" measurement and went to AutoZone.



[t2ylorgang]

Ok; I found the manual just was not sure if it had the measurements for the hoses. I haven't looked through it in depth yet. Thank you!



[WhiskeyD]

most skis are 8mm or 12mm



[t2ylorgang]

most skis are 8mm or 12mm

Awesome thank you Whiskey



[mikidymac]

8mm oil lines from the tank to the pump, 3/32" on the oil injection lines fuel lines will be 5/16" feed and 1/4" return.



[t2ylorgang]

8mm oil lines from the tank to the pump, 3/32" on the oil injection lines fuel lines will be 5/16" feed and 1/4" return.

You’re awesome thank you! I’ll be working on it this weekend and rebuilding the carbs.



[Hunter77ah]

OSD marine has tygon. I used it for my oil lines.
