97 Gtx Water Regulator Valve ?

[digital sol]

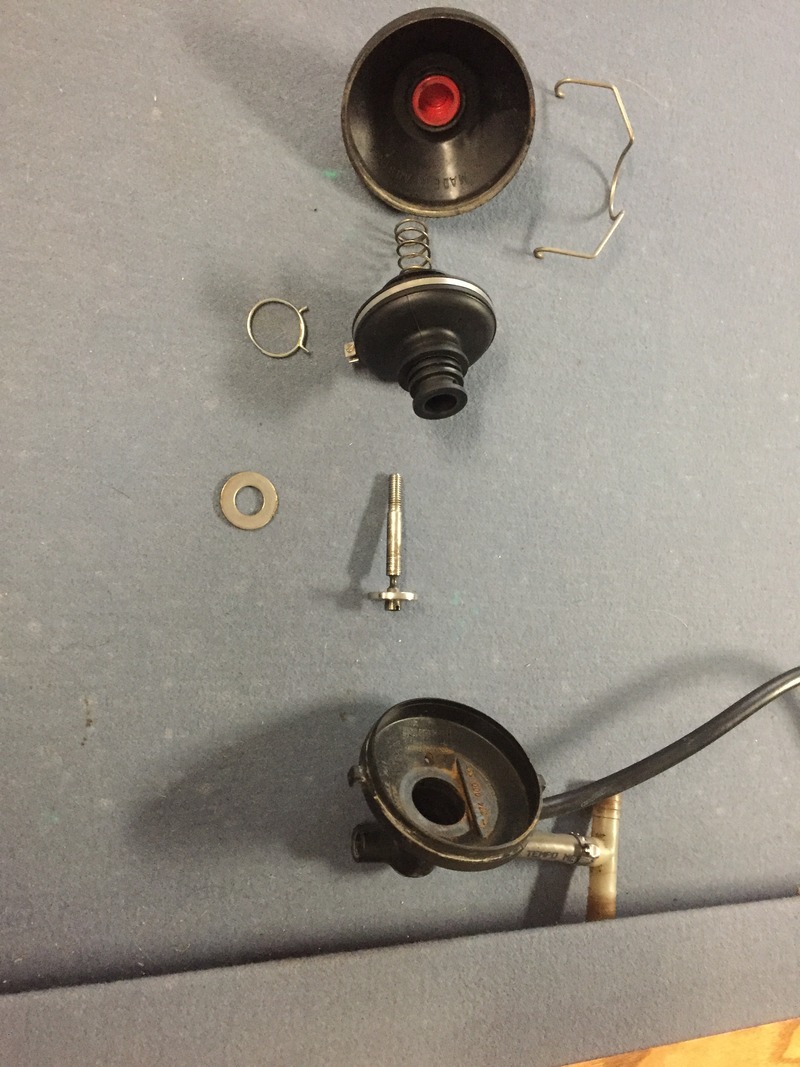

I tore down my water regulator valve a month ago and moved since then and just finally am getting back to putting it back together. I didnt find any good pictures in the manual showing its assemble pictures and It seems like I have an extra washer?

Can someone tell me if this is the correct install order and/or where this extra washer goes?

I had to order a new bellow because the old clip was rusted and poked holes in it. I have a new bellow & clip now.



[LouDoo]

Does this help?
http://partsfinder.onlinemicrofiche...ake=seadoopwc&a=45&b=12&c=0&d=-COOLING-SYSTEM

Lou



[pwgsx]

Pretty sure that washer does not go in there



[digital sol]

Thanks guys, it must have just gotten thrown in the wrong parts bag.



[AdamXP800]

Some of them do come with washer's like that under the spring. My 97 Gtx came stock with 2
