Schematic for a GTI 2020 anyone?
I want to install a USB charger.
OEM 170 Euro, Amazon 20 Euro.



[mkov608]

You don't need a schematic for that; just connect a 12v to 5 v converter to the battery.

https://www.amazon.com/dp/B08H89LTP...lja1JlZGlyZWN0JmRvTm90TG9nQ2xpY2s9dHJ1ZQ&th=1



[SeaDooGTI130]

I want to connect the charger after the relay, so I dont drain the battery.
Maybe on one of the free fuses, or on the instrument cables.

Amazon charger



[mkov608]

Well, if you don't plug anything into the charger, there is no load on the circuit, so it won't drain the battery. So, all you need to do is to make sure you only plug your chargeable item into the connector when the ski is running.

If you still want the schematic, you need to buy the shop manual.

bestshopmanuals@gmail.com



[SeaDooGTI130]

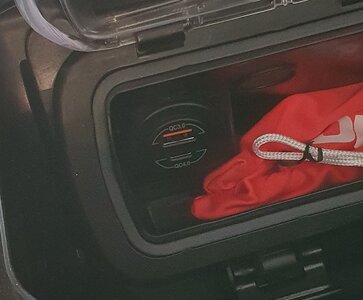

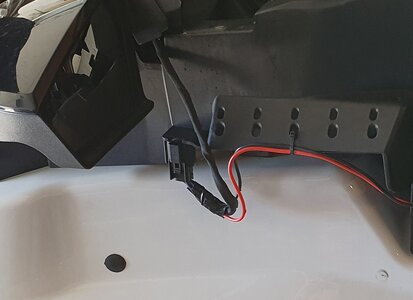

This is how I did it.

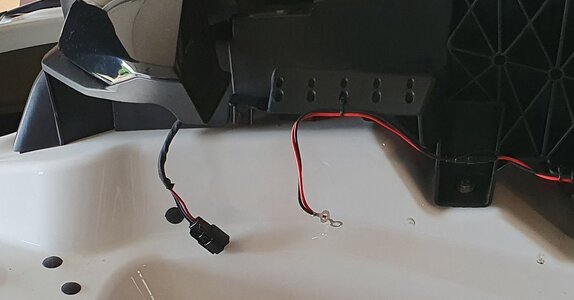

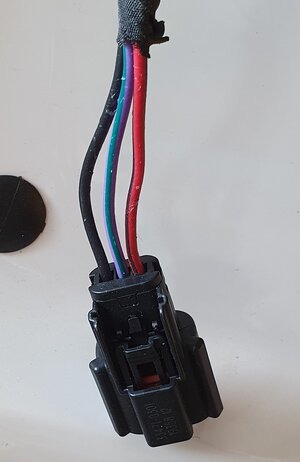

Expansion connector under left panel. Black=0V, green/lilac=12V when ignition on, red/black=12V permanent.
