Please Help me identify these o-rings!

[jakenbake]

Im rebuilding my 2001 gtx di and am almost done but i have a few orings left and im not sure where they go. any help would be greatly appreciated.



Not sure where any of these go. They came in a top end gasket kit, i googled the descriptions and part numbers but didnt find anything.

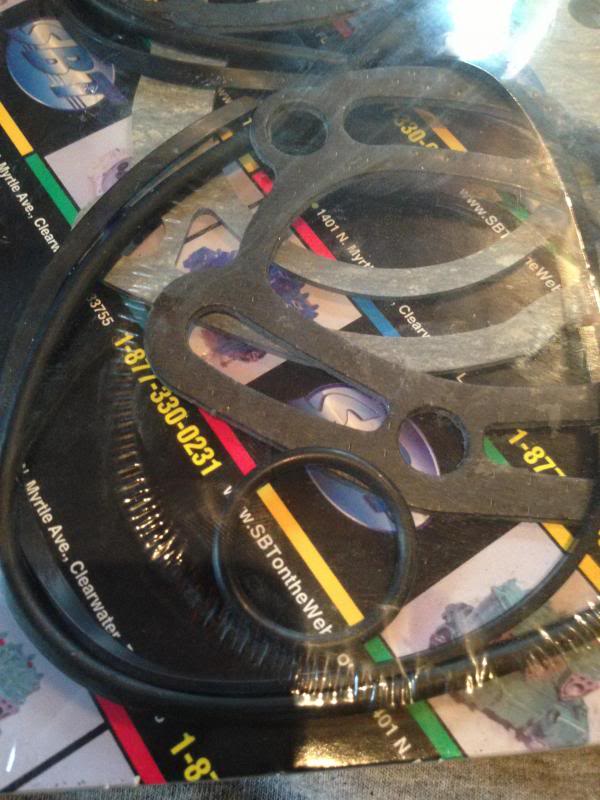

And lastly what does this one round o-ring go to? it came in a external gasket kit.

Thanks alot!

Jake



[- BiRkS_]

Smaller O-rings and blue seals look like the ones for the RAVE'S

Black seal-like looking things are for RV shaft.

Larger O-rings, when looking at the legend..Looks like they are for RAVES?

I'm sure an expert will chime in here.. but this should be a good start.



[jakenbake]

Thanks alot! I was thinking they must be for the rave valves.



[jakenbake]

Figured out everything in the first pic. can anyone help me with the small o-ring in the second pic? thanks alot



[kicker]

I will take a stab at it.
Possibly air injector O ring, that goes at the base of the injector, on top of the head. Or the oil injection pump O ring.



[jakenbake]

I will take a stab at it.
Possibly air injector O ring, that goes at the base of the injector, on top of the head. Or the oil injection pump O ring.

Wouldn't there be two o rings for the air injector? It does look like it could be the oil pump o ring (although my pump is still installed so i cant be sure). Thanks for the help! any one else?



[jakenbake]

It actually looks like my o ring is too big for the oil pump. my o ring is about 3cm diameter and the oil pump calls for a 1.8cm o ring. thanks for the help though

according to sbt's web site:This kit is every gasket needed for installation of an SBT short block, following our installation guidelines. It includes (where used): flywheel cover, intake manifold, carb base/mounting plate, exhaust manifold, headpipe & cooling gaskets/o-rings.

What is the carb base/ mounting pate? my ski doesn't have a carb since its DI...



[nevitt4]

It actually looks like my o ring is too big for the oil pump. my o ring is about 3cm diameter and the oil pump calls for a 1.8cm o ring. thanks for the help though

according to sbt's web site:This kit is every gasket needed for installation of an SBT short block, following our installation guidelines. It includes (where used): flywheel cover, intake manifold, carb base/mounting plate, exhaust manifold, headpipe & cooling gaskets/o-rings.

What is the carb base/ mounting pate? my ski doesn't have a carb since its DI...

a lot of times the gasket kit come for more than one ski



[jakenbake]

a lot of times the gasket kit come for more than one ski

The sticker on the package says its for a 951 DI. All of the other gaskets/ o rings in the kit have been very obvious but this one has me stumped!



[jakenbake]

Just called SBT and figured it out in a few mins! it was for the starter motor. Thanks for the help
