1996 xp 787 hose routing

Status
Not open for further replies.
A

Axkiker

New Member
Anyone have a diagram or pics of the hoses and where all are routed to on an xp 787. Its been so long since ive pulled mine apart im not totally sure of where everything goes.


should be an image, not a link. If you click on the image it'll just take you to the source of the image, which is my photobucket. So either way it should work. Anyone else not see the image?

suke said:
should be an image, not a link. If you click on the image it'll just take you to the source of the image, which is my photobucket. So either way it should work. Anyone else not see the image?
Click to expand...

Okay .... my stupid company firewall is prolly blocking...

thanks

Sorry guys, I look at prints, and equipment explosion drawings (like the one I posted) all day, I just take it for granted that is self explanatory, my bad.

racerxxx said:
Sorry guys, I look at prints, and equipment explosion drawings (like the one I posted) all day, I just take it for granted that is self explanatory, my bad.
Click to expand...

Its not bad, I just needed some additional clarification as to what is doing what etc... Im trying to put this together from a box of parts and this is my first rodeo with a ski.

Okay so another quick question... Did these skis come with a way to hook a hose up to it. I cant remember seeing anything in my box-o-jetski parts and do not see anything in the manual which shows there being one.

If not can it be added.

suke said:

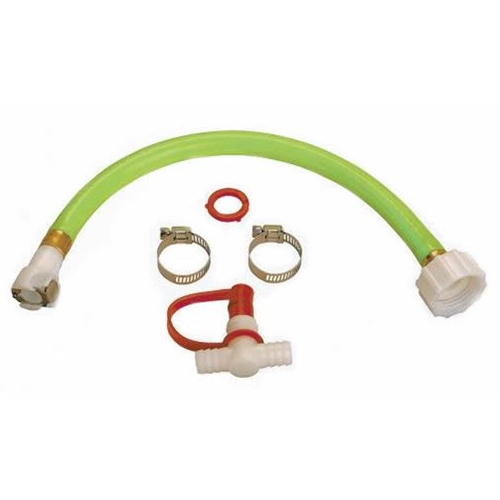

Got mine on Amazon. Was like $19 shipped for that kit I think.
Click to expand...

Is there any way around this for the time being... I know I cant get it in time to have everything ready for this weekend. Didnt know if there was something I could get locally.. possibly from plumbing suply etc.

Axkiker said:
Is there any way around this for the time being... I know I cant get it in time to have everything ready for this weekend. Didnt know if there was something I could get locally.. possibly from plumbing suply etc.
Click to expand...

My local seadoo dealer had them in stock for the same price as Amazon. My closest dealer is an hour from my house, so I just ordered online.

So if I am unable to find one locally in time.. would it hurt to just build something on my own that accepts a standarn hose connection... I wasnt sure if the original flush fitting limited pressure etc...

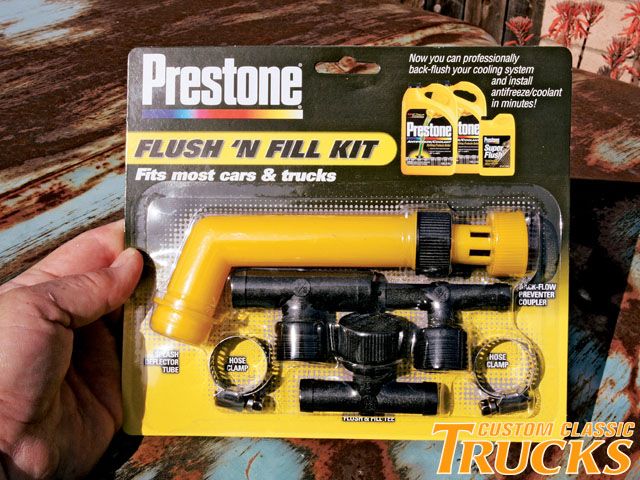

You could cobble it with a radiator flush kit, you can get it at Walmart, but honestly it's probably almost the same price for the correct flush kit. Just hit your local dealer, part# 295500068 How far is it to CC powersports?




racerxxx said:
You could cobble it with a radiator flush kit, you can get it at Walmart, but honestly it's probably almost the same price for the correct flush kit. Just hit your local dealer, part# 295500068 How far is it to CC powersports?



Click to expand...

Yeah its more of just a worst case scenerio.... Not sure if ill be able to get away from work at a time any of the local parts dealers are open.. but im gonna give it a try.
